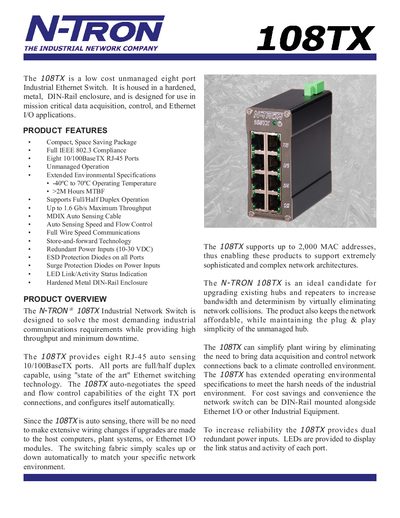

The 108TX is a low cost unmanaged eight port industrial Ethernet switch. It is housed in a hardened, metal, DIN-Rail enclosure, and is designed for use in mission critical data acquisition, control, and Ethernet I/O applications.
The N-TRON 108TX Industrial Network Switch is a low‑cost unmanaged eight‑port Ethernet switch housed in a hardened metal DIN‑rail enclosure. It offers full IEEE 802.3 compliance, auto‑sensing 10/100BaseTX ports, full/half‑duplex operation, and store‑and‑forward technology for reliable, high‑throughput networking in mission‑critical industrial environments.
Key specifications include eight RJ‑45 ports, dual redundant 10‑30 VDC power inputs, operating temperature from –40 °C to 70 °C, MTBF over 2 million hours, and a compact size (3.50" × 1.50" × 4.22"). The switch also meets regulatory approvals such as FCC Class A, CE, and UL listings, making it suitable for utility substations, shipboard, and traffic control applications.
| Height | 3.50" (8.89 cm) |
|---|---|
| Width | 1.50" (3.81 cm) |
| Depth (incl. DIN‑Rail clip) | 4.22" (10.72 cm) |
| Weight | 0.64 lbs (0.29 kg) |
| Input Voltage | 10‑30 VDC |
| Operating Temperature | -40 °C to 70 °C |
| MTBF | >2 Million Hours |
| Number of Ports | Eight 10/100BaseTX RJ‑45 ports |
It provides eight 10/100BaseTX RJ‑45 ports.
The switch operates from –40 °C to 70 °C.
Yes, it includes dual redundant power inputs rated 10‑30 VDC.
Yes, it is a low‑cost unmanaged eight‑port industrial Ethernet switch.
