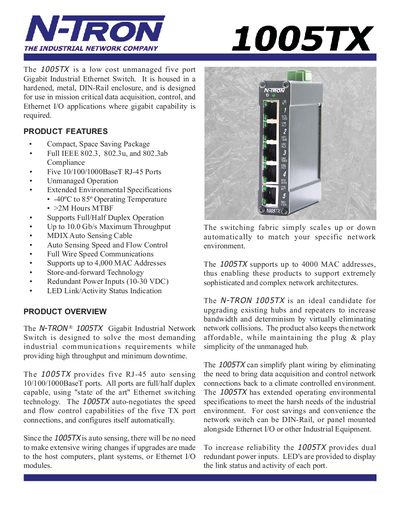

The 1005TX is a low cost unmanaged five port Gigabit Industrial Ethernet Switch. It is housed in a hardened, metal, DIN-Rail enclosure, and is designed for use in mission critical data acquisition, control, and Ethernet I/O applications where gigabit capability is required.
The 1005TX provides five RJ‑45 auto‑sensing 10/100/1000BaseT ports with full‑/half‑duplex operation and plug‑and‑play simplicity. It features a hardened metal DIN‑rail enclosure, extended environmental specifications (-40 °C to 85 °C), and dual redundant power inputs (10‑30 VDC) for reliable industrial use.
Designed for mission‑critical data acquisition and control, the switch supports up to 4,000 MAC addresses, full wire‑speed communications, and offers LED link/activity indicators for each port. It can be mounted on DIN‑rail or panel‑mounted alongside Ethernet I/O equipment, simplifying plant wiring and reducing downtime.
| Height | 4.30" (10.92 cm) |
|---|---|
| Width | 1.00" (2.54 cm) |
| Depth | 3.63" (9.22 cm) |
| Weight | 0.61 lb (0.27 kg) |
| Input Voltage | 10‑30 VDC |
| Steady Input Current | 230 nA @ 24 V |
| Inrush Current | 13 A @ 24 V (61 µs) |
| Operating Temperature | -40 °C to 85 °C |
| MTBF | >2 Million Hours |
| Maximum Throughput | 10.0 Gb/s |
The switch operates from –40 °C to 85 °C.
It supports up to 4,000 MAC addresses.
Yes, it provides dual redundant power inputs of 10‑30 VDC.
The switch can be DIN‑rail mounted or panel‑mounted alongside Ethernet I/O equipment.
