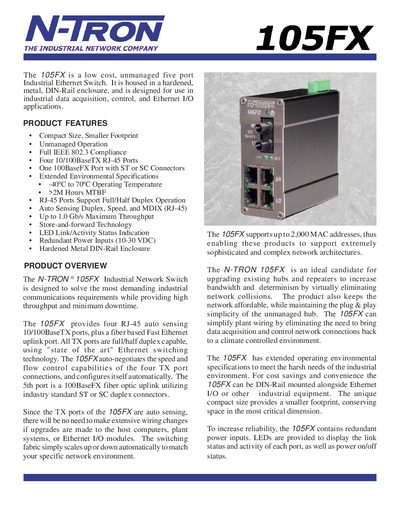

The N-TRON 105FX is an industrial network switch from N-TRON ® that is designed to solve the most demanding industrial communications requirements while providing high throughput and minimum downtime. It provides four RJ-45 auto sensing 10/100BaseTX ports, plus a fiber based Fast Ethernet uplink port. All TX ports are full/half duplex capable, using "state of the art" Ethernet switching technology.
The N-TRON 105FX Industrial Network Switch provides four auto‑sensing 10/100BaseTX RJ‑45 ports and a 100BaseFX fiber uplink (ST or SC). It is fully IEEE 802.3 compliant, supports up to 2,000 MAC addresses, and offers plug‑and‑play operation with redundant 10‑30 VDC power inputs.
Housed in a rugged metal DIN‑rail enclosure, the switch operates from –40 °C to 70 °C, has an MTBF of over 2 million hours, and includes LED link/activity indicators. Ordering options cover multimode and single‑mode fiber variants, and the device meets FCC, CE, UL, and IEEE 1613 approvals for industrial use.
| Height | 3.83 in (9.73 cm) |
|---|---|
| Width | 1.50 in (3.81 cm) |
| Depth (incl. DIN‑Rail clip) | 4.80 in (12.2 cm) |
| Weight | 0.60 lbs (0.27 kg) |
| Input Voltage | 10‑30 VDC |
| Input Current (24 V) | 270 mA |
| Operating Temperature | -40 °C to 70 °C |
| MTBF | >2 million hours |
| Maximum Throughput | Up to 1.0 Gb/s |
| Supported MAC Addresses | Up to 2,000 |
It operates from –40 °C to 70 °C.
The switch supports up to 2,000 MAC addresses.
It has one 100BaseFX fiber uplink port with ST or SC connectors.
The device accepts 10‑30 VDC input voltage and draws 270 mA at 24 V.
