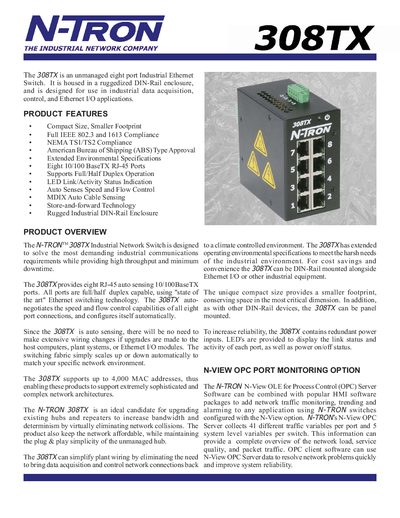

The N-TRON 308TX Industrial Network Switch is an unmanaged eight port Industrial Ethernet Switch. It is housed in a ruggedized DIN-Rail enclosure, and is designed for use in industrial data acquisition, control, and Ethernet I/O applications.
The N-TRON 308TX Industrial Ethernet Switch is a rugged, DIN‑rail‑mounted device offering eight auto‑sensing 10/100Base‑TX RJ‑45 ports. It provides full/half‑duplex operation, auto‑negotiation of speed and flow control, and supports up to 4,000 MAC addresses for complex network architectures.
Optional N‑View OPC Server software adds traffic monitoring, trending and alarming capabilities, delivering detailed network load and quality information for improved reliability. The switch meets IEEE 802.3 and 1613 standards, NEMA TS1/TS2 compliance, and includes redundant power inputs for high availability.
| Height | 3.46" (8.80 cm) |
|---|---|
| Width | 2.01" (5.10 cm) |
| Depth | 3.38" (8.59 cm) |
| Weight | 0.75 lbs (0.34 kg) |
| Input Voltage | 10‑30 VDC |
| Input Current | 250 mA @ 24 V |
| Inrush Current | 9.0 A / 0.5 ms @ 24 V |
| Operating Humidity | 10 % to 95 % (non‑condensing) |
| Operating Altitude | 0 to 10,000 ft |
| Shock Resistance | 200 g @ 10 ms |
| Vibration Resistance | 50 g, 5‑200 Hz, triaxial |
| Network Media (10BaseT) | Cat‑3 or higher |
| Connectors | Eight (8) RJ‑45 TX ports |
The switch provides eight 10/100Base‑TX RJ‑45 ports.
Yes, it is housed in a ruggedized DIN‑rail enclosure and can also be panel‑mounted.
Yes, the ports auto‑sense speed, duplex and cable type for each connection.
N‑View adds OPC server software that monitors traffic, trends data and raises alarms for each port.
