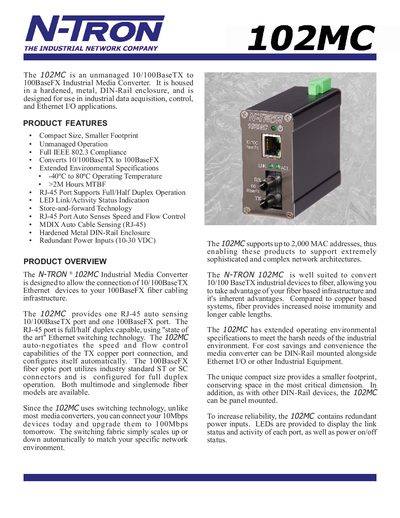

The N-TRON 102MC Industrial Media Converter is an unmanaged 10/100BaseTX to 100BaseFX Industrial Media Converter. It is housed in a hardened, metal, DIN-Rail enclosure, and is designed for use in industrial data acquisition, control, and Ethernet I/O applications.
The N-TRON 102MC is an unmanaged 10/100BaseTX to 100BaseFX industrial media converter housed in a hardened metal DIN‑Rail enclosure. It provides one auto‑sensing RJ‑45 10/100BaseTX port and one 100BaseFX fiber port (ST or SC), supporting both multimode and single‑mode fiber. The device offers plug‑and‑play operation, redundant power inputs (10‑30 VDC), and LEDs for link and power status.
Key specifications include a compact size (2.88" × 1.50" × 4.82"), weight of 0.49 lb, operating temperature from –40 °C to 80 °C, and support for up to 2,000 MAC addresses. It meets multiple regulatory approvals such as FCC, CE, UL, IEEE 1613, and NEMA TS1/TS2.
| Height | 2.88" (7.31 cm) |
|---|---|
| Width | 1.50" (3.81 cm) |
| Depth (incl. DIN‑Rail clip) | 4.82" (12.2 cm) |
| Weight | 0.49 lb (0.22 kg) |
| Input Voltage | 10‑30 VDC |
| Input Current @24 V | 140 mA |
| Operating Temperature | -40 °C to 80 °C |
| Storage Temperature | -40 °C to 85 °C |
| Operating Altitude | 0 to 10,000 ft |
| Fiber Connectors | ST or SC duplex ports |
The 102MC provides a 100BaseFX port with either an ST or SC duplex connector.
It accepts 10‑30 VDC input voltage, draws 140 mA at 24 V, and has an inrush current of 8.5 A for 0.7 ms at 24 V.
The converter operates from –40 °C up to 80 °C.
It can support up to 2,000 MAC addresses.
