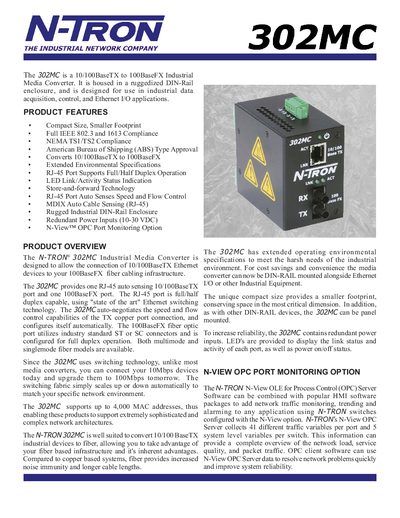

The N-TRON® 302MC Industrial Media Converter is designed to allow the connection of 10/100BaseTX Ethernet devices to your 100BaseFX fiber cabling infrastructure.
The N‑TRON 302MC Industrial Media Converter provides a rugged DIN‑rail mounted solution for linking 10/100BaseTX Ethernet devices to a 100BaseFX fiber network. It features a single auto‑sensing RJ‑45 port and a fiber port that accepts ST or SC connectors, supporting both multimode and single‑mode fiber.
Designed for harsh industrial environments, the converter offers redundant power inputs (10‑30 VDC), extended temperature and humidity ranges, and optional N‑View OPC monitoring for real‑time network traffic analysis.
| Height | 3.0 in (7.62 cm) |
|---|---|
| Width | 2.0 in (5.08 cm) |
| Depth | 3.17 in (8.052 cm) |
| Weight | 0.75 lb (0.3 kg) |
| Input Voltage | 10‑30 VDC |
| Input Current | 250 mA @ 24 V |
| Inrush Current | 9.5 A @ 0.9 ms @ 24 V |
| Operating Temperature | -20 °C to 70 °C |
| Storage Temperature | -40 °C to 85 °C |
| Operating Humidity | 10 % to 95 % (non‑condensing) |
| Operating Altitude | 0 to 10,000 ft |
| Shock Resistance | 200 g @ 10 ms |
| Vibration Resistance | 50 g, 5‑200 Hz, triaxial |
| Fiber Connectors | ST or SC duplex ports |
| Network Media – Copper | 10BaseT > Cat3, 100BaseTX > Cat5 |
| Network Media – Fiber | Multimode 0‑62.5/125 µm, Single‑mode 7‑10/125 µm |
The 302MC provides one 100BaseFX port that accepts either ST or SC duplex connectors.
It operates from a 10‑30 VDC input voltage and draws 250 mA at 24 V, with an inrush current of 9.5 A for 0.9 ms.
The converter works from –20 °C to 70 °C, can be stored from –40 °C to 85 °C, handles 10 %‑95 % non‑condensing humidity, and operates up to 10,000 ft altitude.
Yes, with the optional N‑View OPC Server, it can monitor up to 41 traffic variables per port and provide real‑time network status.
