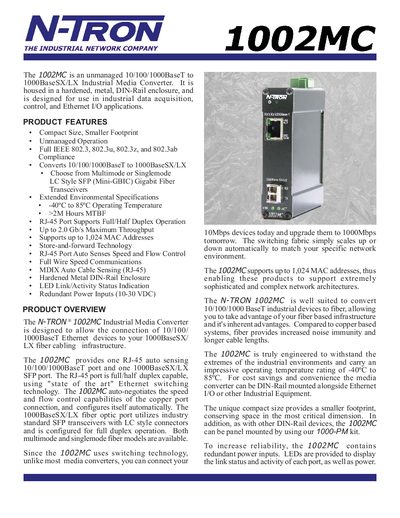

The 1002MC is an unmanaged 10/100/1000BaseT to 1000BaseSX/LX Industrial Media Converter. It is housed in a hardened, metal, DIN-Rail enclosure, and is designed for use in industrial data acquisition, control, and Ethernet I/O applications.
The N-TRON 1002MC Industrial Media Converter provides a single RJ‑45 auto‑sensing 10/100/1000BaseT port and a 1000BaseSX/LX SFP fiber port, enabling connection of Ethernet devices to fiber infrastructure. It uses switching technology that automatically scales throughput and supports up to 1,024 MAC addresses for complex network architectures.
Designed for harsh industrial environments, the 1002MC features a hardened metal DIN‑Rail enclosure, redundant power inputs (10‑30 VDC), and operation from –40 °C to 85 °C. The compact size saves space, and optional panel‑mount kits allow flexible installation. LEDs indicate link and power status, and the unit offers ESD and surge protection for reliable performance.
| Height | 4.30" (10.92 cm) |
|---|---|
| Width | 1.00" (2.54 cm) |
| Depth (incl. DIN‑Rail clip) | 3.91" (9.94 cm) |
| Weight | 0.60 lbs (0.22 kg) |
| Input Voltage | 10‑30 VDC |
| Input Current | 200 nA @24 V |
| Inrush Current | 13 A /0.8 ms @24 V |
| Operating Temperature | -40 °C to 85 °C |
| Storage Temperature | -40 °C to 85 °C |
| Operating Humidity | 10 % to 95 % |
| Operating Altitude | 0 to 10,000 ft |
| Supported Copper Speeds | 10/100/1000BaseT |
| Fiber Port Type | LC‑style SFP (Mini‑GBIC) Gigabit |
| Maximum MAC Addresses | 1,024 |
It uses an LC‑style SFP (Mini‑GBIC) gigabit fiber transceiver.
The converter can support up to 1,024 MAC addresses.
It operates from –40 °C to 85 °C.
Yes, it includes redundant power inputs rated 10‑30 VDC.
