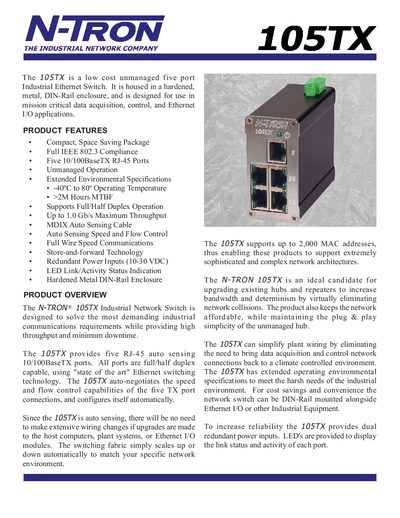

The N-TRON 105TX is a low cost, five port Industrial Ethernet Switch. It is housed in a hardened, metal, DIN-Rail enclosure, and is designed for use in mission critical data acquisition, control, and Ethernet I/O applications.
The N-TRON 105TX Industrial Network Switch provides five auto‑sensing 10/100BaseTX RJ‑45 ports with full/half‑duplex operation, MDIX auto‑cabling, and store‑and‑forward technology. It is designed for mission‑critical data acquisition and control applications, offering up to 1.0 Gb/s throughput and support for up to 2,000 MAC addresses.
The switch features a compact metal DIN‑rail enclosure, redundant 10‑30 VDC power inputs, LED link/activity indicators, and extended temperature range of –40 °C to 80 °C. It meets IEEE 802.3 compliance, IEC/UL regulatory approvals, and is suitable for harsh industrial environments.
| Ports | Five 10/100BaseTX RJ-45 |
|---|---|
| Input Voltage | 10-30 VDC |
| Power Supply | 24V @ 1.3 A |
| Operating Temperature | -40 °C to 80 °C |
| MTBF | >2 Million Hours |
| Weight | 0.54 lb (0.25 kg) |
| Height | 2.88 in (7.31 cm) |
| Width | 1.50 in (3.81 cm) |
| Depth | 3.55 in (9.02 cm) |
The switch supports up to 1.0 Gb/s maximum throughput.
It can store up to 2,000 MAC addresses.
Yes, it provides dual redundant power inputs of 10‑30 VDC.
Yes, it operates as an unmanaged industrial Ethernet switch.
