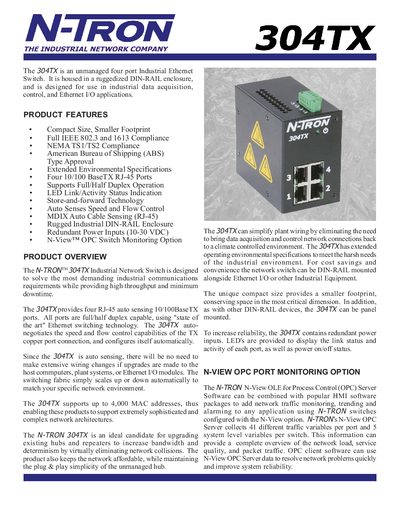

The N-TRONTM 304TX Industrial Network Switch is designed to solve the most demanding industrial communications requirements while providing high throughput and minimum downtime.
The N-TRON 304TX Industrial Network Switch is a rugged, compact‑size, four‑port 10/100BaseTX Ethernet switch designed for industrial data acquisition, control and Ethernet I/O applications. It features auto‑sensing ports, full/half‑duplex operation, redundant power inputs (10‑30 VDC) and LED link/activity indicators.
An optional N‑View OPC Server adds network traffic monitoring, trending and alarming, collecting 41 traffic variables per port and 5 system‑level variables. The switch meets IEEE 802.3 and IEC 1613 standards, NEMA TS1/TS2 compliance, and includes extended environmental specifications for harsh industrial environments.
| Height | 3.1" (7.874 cm) |
|---|---|
| Width | 2.0" (5.08 cm) |
| Depth | 3.4" (8.636 cm) |
| Weight | 0.75 lb (0.3 kg) |
| Input Voltage | 10‑30 VDC |
| Input Current | 250 mA @ 24 V |
| Operating Temperature | -20 °C to 70 °C |
| Storage Temperature | -40 °C to 85 °C |
| Operating Humidity | 10 % to 95 % (non‑condensing) |
| Redundant Power Inputs | 10‑30 VDC |
| Ports | Four 10/100BaseTX RJ‑45 auto‑sensing ports |
It provides four 10/100BaseTX RJ‑45 auto‑sensing ports.
The switch operates from a 10 V to 30 V DC input.
The N‑View OPC Server option can be added to monitor traffic, collect variables and provide trending and alarming.
The 304TX is an unmanaged Ethernet switch.
