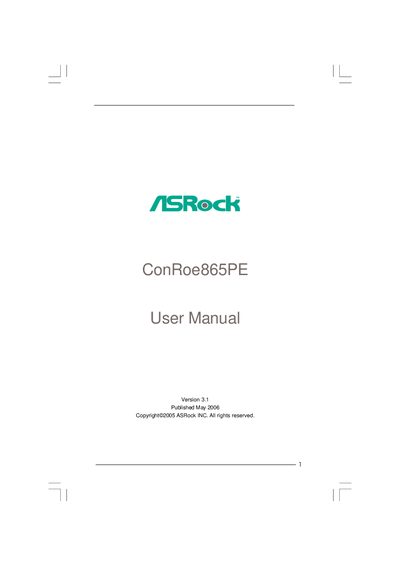

ConRoe865PE User Manual, Introduces the characteristics of the ConRoe865PE product
This manual covers everything needed to install and configure the ASRock ConRoe865PE motherboard, including package contents, CPU and memory installation, expansion slot usage, and connector details. It also explains BIOS setup options, hardware health monitoring, and power management features.
Additional sections describe the support CD utilities, driver installation, and compatible operating systems, along with safety cautions for over‑clocking and component handling.
| Form Factor | ATX 12.0" x 9.0" (30.5 cm x 22.9 cm) |
|---|---|
| CPU Socket | LGA 775 |
| Supported FSB | 1066/800/533 MHz |
| Northbridge Chipset | Intel 865PE / 865G |
| Southbridge Chipset | Intel ICH5 |
| Memory Slots | 4 DDR DIMM slots |
| Maximum Memory | 4 GB |
| PCI Slots | 6 PCI slots |
| AGP Slot | 1 AGP slot |
| Audio Codec | Realtek ALC850 7.1‑channel |
| LAN Controller | Realtek PCI LAN 8101L, 10/100 Mbps |
The motherboard supports Microsoft Windows 98SE, ME, 2000, XP, and XP 64‑bit.
Insert the CD into the CD‑ROM drive; it will auto‑run the main menu, or you can launch ASSETUP.EXE manually.
The board provides six PCI slots.
