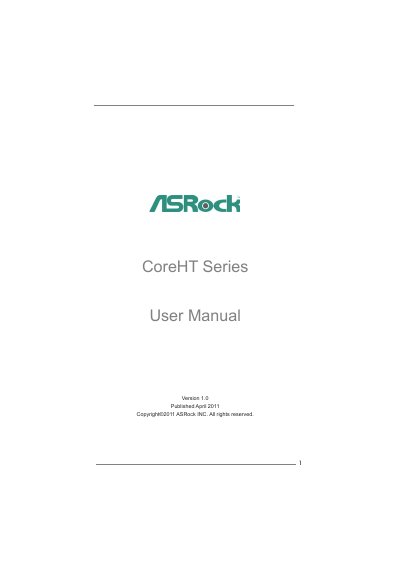

ASRock CoreHT Series User Manual, Introduces the features and characteristics of this series of products
This manual covers the CoreHT Series motherboard from ASRock, detailing safety instructions, hardware components, and installation steps. It includes a quick start guide, detailed UEFI setup options, and software support information.
The document also lists technical specifications such as supported processors, memory types, graphics, I/O ports, and power requirements, helping users configure and maintain their system safely and efficiently.
| Processor | Intel Mobile Sandy Bridge Processor, 2nd Generation Intel Core i7/i5/i3 Dual-Core |
|---|---|
| Chipset | Mobile Intel HM65 |
| Memory | DDR3 1066/1333/1600, up to 16GB, 2 x SO-DIMM slots |
| Graphics | Mobile Intel HD Graphics 3000 |
| Rear I/O | 1 x HDMI, 1 x D-Sub, 4 x USB 2.0, 5 Audio Jacks, 1 x S/PDIF, 1 x eSATA 3.0, 2 x USB 3.0 |
| Power Adapter | 90W / 19V |
| Dimensions | 195mm (W) x 70mm (H) x 186mm (L) |
| Wi‑Fi | 802.11b/g/n, 2T2R |
The system supports Microsoft Windows 7, Windows 7 64‑bit, Windows Vista, Vista 64‑bit, Windows XP and XP 64‑bit.
The motherboard supports up to 16 GB of DDR3 memory using two SO‑DIMM slots.
There are two USB 3.0 ports on the front I/O.
The supplied power adapter is rated at 90 W and 19 V.
