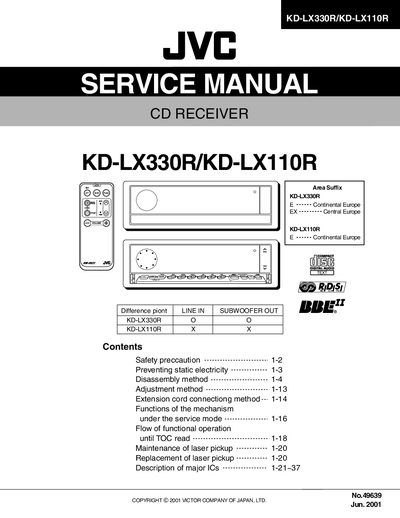

This document is a service manual for CD receivers published by JVC, Japan in June 2001. It covers safety precautions, static electricity prevention, disassembly and adjustment methods, extension cord connection methods, mechanism functions under service mode, functional operation flow until TOC read, maintenance and replacement of laser pickup, and description of major ICs for KD-LX330R and KD-LX110R models.
This service manual provides safety precautions, static‑electricity prevention, disassembly and adjustment procedures, and wiring instructions for the JVC KD‑LX330R and KD‑LX110R CD receivers. It also describes the functional operation flow and service‑mode mechanisms.
Detailed sections include descriptions of major ICs, pin‑function tables, laser‑pickup maintenance and replacement, and a complete electrical parts list for front‑board components.
See the “Preventing static electricity” section on page 1‑3.
The manual covers laser‑pickup maintenance on page 1‑20.
The CD driver IC is Mi FAN8037 (IC661).
The system reset is performed by IC Hi 000874360‑T (IC702).
