TK-C1480E is a high-resolution color video camera introduced by JVC. It uses a 1/2-inch EXVIEW CCD with a sensitivity of 0.8 lux (F 1.2, 50%) and 0.4 lux (F 1.2, 25%). Combined with the slow shutter function, these are increased to 0.025 lux (F 1.2, 50%) and 0.0125 lux (F 1.2, 25%), respectively. It also features JVC's newly developed DSP for clear distinction between bright and dark subjects and supports RS-422A/RS-485 communication standards for remote camera parameter setting.

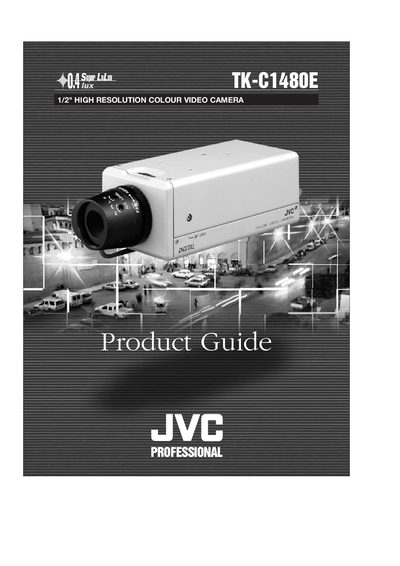

The TK-C1480E is a 1/2‑inch EXVIEW CCD camera offering high sensitivity (0.8 lux at F1.2, 50%) and a slow‑shutter mode that reaches 0.025 lux. It includes functions such as backlighting, motion detection, extended dynamic range (ExDr), and RS‑422A/RS‑485 communication for remote surveillance. The guide details the camera's imaging performance, contrast mixing, and high‑speed side‑shutter operation.
Remote control is supported via JVC's free software, which allows camera parameter adjustment over an RS‑422A interface (converted to RS‑232) and video output through a PC video card. The software provides access to ExDr/shutter settings, iris/BLC, AGC, white balance, and other image adjustments.
| Sensitivity (standard) | 0.8 lux (F1.2, 50%) |
|---|---|
| Sensitivity (low light) | 0.4 lux (F1.2, 25%) |
| Sensitivity (slow shutter) | 0.025 lux (F1.2, 50%) |
| CCD type | 1/2" EXVIEW CCD |
| TV Lines | 480 TV Lines |
| Signal‑to‑Noise Ratio | 50 dB |
| Communication interfaces | RS‑422A / RS‑485 |
| Extended Dynamic Range (ExDr) | Enabled |
| Motion Detection | Enabled |
| Remote control via PC | RS‑422A interface with JVC software |
The camera supports RS‑422A and RS‑485 interfaces for remote control.
The camera can operate at 0.8 lux (F1.2, 50%) and down to 0.025 lux with the slow‑shutter mode.
Yes, it includes an ExDr (Extended Dynamic Range) mode.
By using JVC Remote Control Software over an RS‑422A to RS‑232 converter and a video card for image output.
