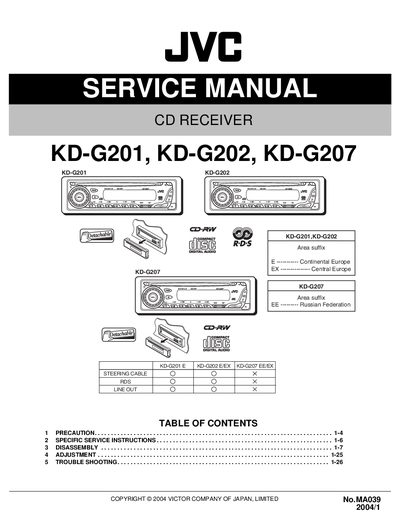

This document is a service manual from Victor Company of Japan, Limited in 2004, which provides information on the precautions, specific service instructions, disassembly, adjustment, and troubleshooting for the KD-G201, KD-G202, and KD-G207 CD receivers. The products feature a maximum power output of 50 W per channel, a continuous power output of 19 W per channel, and a frequency range of 40 Hz to 20,000 Hz.
This service manual provides detailed information for the JVC KD‑G201, KD‑G202 and KD‑G207 CD receivers. It includes safety precautions, electrical specifications, and step‑by‑step procedures for disassembly, adjustment, and troubleshooting of the units.
The document also contains wiring diagrams, connector references, and guidelines for handling the optical pickup and preventing static damage. Technical data such as power output, frequency response, and operating voltage are listed for quick reference.
| Maximum Power Output Front | 50 W per channel |
|---|---|
| Continuous Power Output (RMS) Front | 19 W per channel into 4 Ω |
| Frequency Response (Audio) | 40 Hz to 20 000 Hz |
| Signal‑to‑Noise Ratio (Audio) | 70 dB |
| FM Tuner Frequency Range | 87.5 MHz to 108.0 MHz |
| AM (MW) Frequency Range | 522 kHz to 1 620 kHz |
| CD Player Type | Compact disc player |
| CD Player Frequency Response | 5 Hz to 20 000 Hz |
| Operating Voltage | DC 14.4 V (11 V to 16 V allowance) |
| Installation Size | 182 mm × 52 mm × 150 mm |
| Mass | 1.3 kg (excluding accessories) |
The unit requires DC 14.4 V, with an allowable range of 11 V to 16 V.
The front channels can deliver a maximum of 50 W per channel into a 4 Ω load.
It uses a non‑contact optical pickup with a semiconductor laser.
Ground yourself and the workbench, wear an anti‑static wrist strap, and never touch the laser diode directly.
