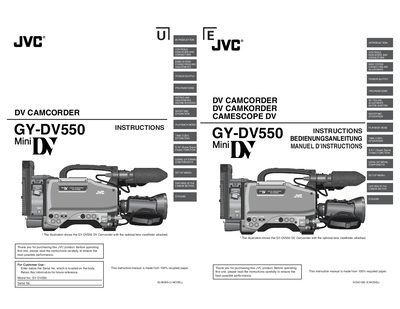

JVC GY-DV550 DV Camcorder User Manual

This guide introduces the basic functions and operation of the JVC GY-DV550 DV Camcorder.

Brand: JVC
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 54
File format: PDF
File size: 4.3 MB
Published: 04 May, 2012
Updated: 30 September, 2023
MD5 checksum: 4E8FD03E0CD4ED1297ACC1C4D5DAF950
PDF: JVC GY-DV550 DV Camcorder User Manual PDF

About this manual

This manual covers safety precautions, power requirements, battery handling, and basic system connections for the JVC GY-DV550 camcorder. It also explains how to attach optional accessories such as lenses, viewfinders, and external microphones.

Detailed sections describe camera settings, shooting and playback procedures, time‑code functions, and troubleshooting tips. Cable length recommendations and electromagnetic‑interference warnings help ensure reliable performance in various environments.

What's inside

Introduction
Controls, Indicators and Connectors
Power Supply
Shooting Operation
Playback Mode
Time Code Operation
Troubleshooting

Specifications

Power supply	12 V DC only
Battery type	CR2032 lithium
Image sensor	Three 1/2" CCDs with 380,000 effective pixels
Sensitivity	F/11, 2000 lux

Frequently asked questions

What power source should be used for the camcorder?

The camcorder must be powered with a 12 V DC source only; other power sources are not permitted.

Which battery does the GY‑DV550 use?

It uses a CR2032 lithium battery; replacement batteries should be Matsushita Electric CR2032.

What cable lengths are recommended to avoid interference?

Use cables that do not exceed the specified maximum lengths to maintain performance and reduce electromagnetic interference.
