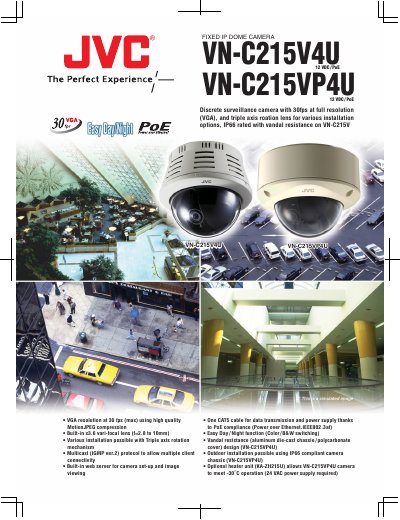

The VN-C215V4U/VN-C215VP4U is a fixed IP dome camera featuring a 3.6× varifocal lens, VGA resolution at 30 fps, and IP66‑rated vandal‑resistant housing. It supports 12 VDC or Power over Ethernet (IEEE802.3af) and offers day/night switching, multicast video streaming, and optional heating for low‑temperature operation.
This manual covers hardware specifications, power options, network configuration, installation methods, user access settings, and maintenance procedures. It also lists accessories, environmental ratings, and troubleshooting tips for reliable outdoor surveillance.
| Resolution | VGA (640×480) at 30 fps |
|---|---|
| Lens | 3.6× varifocal, 2.8‑10 mm |
| Power Supply | 12 VDC or PoE (IEEE802.3af) |
| IP Rating | IP66 |
| Minimum Illumination (Color) | 0.75 lx |
| Minimum Illumination (B&W) | 0.40 lx |
| Operating Temperature | -30 °C to 50 °C (heater required for -30 °C) |
| Dimensions (HxWxD) | 125 mm × 160 mm × 160 mm |
| Weight | 750 g (V4U version) |
It can be powered either by a 12 VDC supply or via Power over Ethernet (IEEE802.3af).
The camera operates from –30 °C to 50 °C; the –30 °C rating requires a 24 VAC power supply for the optional heater.
Up to five users can connect at the same time, and an unlimited number of users are supported when using multicast.
Yes, it includes an Easy Day/Night function that automatically switches between color and black‑and‑white modes.
