Vertisockets TM is a low-cost vertical display mounting application. It can be used to connect board-to-board jumpers and DIP switches, as well as LED devices.
The Vertisockets™ are low‑cost, high‑volume vertical display mounting components suitable for board‑to‑board jumpers, DIP switches and LED devices. They feature bifurcated contacts and a range of lead size options for flexible PCB integration.

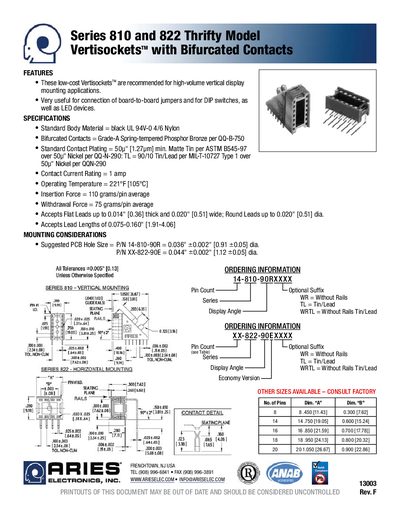

The sheet lists material and contact specifications, electrical ratings, mechanical forces, recommended PCB hole sizes and ordering part numbers for both the 810 and 822 Thrifty versions.
| Standard Body Material | black UL 94V-0 4/6 Nylon |
|---|---|
| Bifurcated Contacts | Grade‑A Spring‑tempered Phosphor Bronze |
| Contact Plating (minimum) | 50 µ" Matte Tin |
| Contact Current Rating | 1 A |
| Operating Temperature | 221 °F (105 °C) |
| Insertion Force | 110 g/pin average |
| Withdrawal Force | 75 g/pin average |
| Flat Lead Size Acceptance | up to 0.014" thick, 0.020" wide |
| Lead Length Range | 0.075‑0.160" (1.91‑4.06 mm) |
| Suggested PCB Hole Size (810) | 0.036" +0.002" |
| Suggested PCB Hole Size (822) | 0.044" +0.002" |
The contact current rating is 1 amp.
The recommended hole size is 0.036" plus a tolerance of 0.002".
The Vertisockets can operate up to 221 °F (105 °C).
