This document provides specifications and characteristics of Ceramic Chip Capacitors manufactured by KEMET Electronics Corporation, including dimensions, capacitance coding, capacitance tolerance, and mounting techniques.

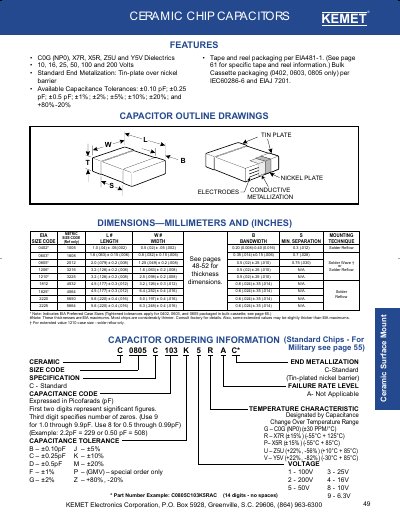

This KEMET datasheet describes the C0805C103K5RAC ceramic chip capacitor and related standard series. It provides the capacitance coding method, tolerance options, dielectric types, voltage ratings and physical dimensions for the 0402, 0603, 0805, 1206, 1210, 1812, 1825, 2220 and 2225 case sizes.
The document also lists ordering information, packaging quantities (reel and bulk cassette) and thickness code reference tables. Engineers can use the specifications to select the appropriate part for surface‑mount applications and to verify mechanical fit and electrical performance.
| Capacitance code format | First two digits are significant figures, third digit is number of zeros |
|---|---|
| Dielectric options | C0G (NP0), X7R, X5R, Z5U, Y5V |
| Standard end metalization | Tin‑plated nickel barrier |
| Chip thickness (0402) | 0.50 ± 0.05 mm |
The first two digits are the significant figures and the third digit indicates the number of trailing zeros.
The series is available with C0G (NP0), X7R, X5R, Z5U and Y5V dielectrics.
