This is the specification sheet for KEMET 0805 C 103 K 5 R A C*, including capacitance value, capacitance tolerance, capacitance size, package type, impedance, distributed capacitance, installation technology and other information.

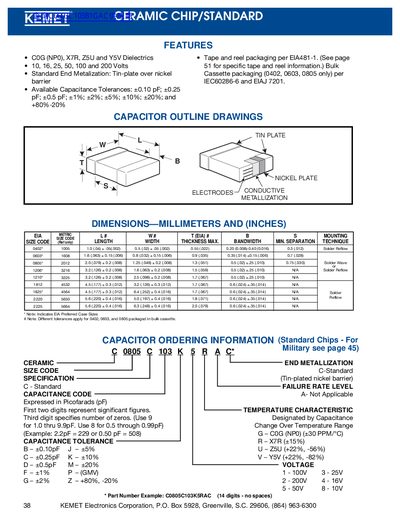

The KEMET Ceramic Chip/Standard datasheet provides detailed specifications for surface‑mount capacitors in standard sizes such as 0402, 0603, 0805 and larger. It lists available dielectric materials, packaging options, dimensional data, and ordering information.
Key sections include features, outline drawings, dimensional tables, capacitance tolerance codes, and a Z5U capacitance range table, helping designers select the right part for their applications.
| Dielectric types | COG (NPO), X7R, Z5U, Y5V |
|---|---|
| Standard end metallization | Tin‑plate over nickel |
| Maximum voltage for 50 V chips | Up to 63 V |
KEMET offers COG (NPO), X7R, Z5U and Y5V dielectric materials for its ceramic chip capacitors.
Although labeled 50 V, the chips can be used in applications up to 63 V.
