This document introduces KEMET's multilayer ceramic capacitors/axial and radial products, including general information, overview, performance characteristics, electrical characteristics and environmental characteristics.

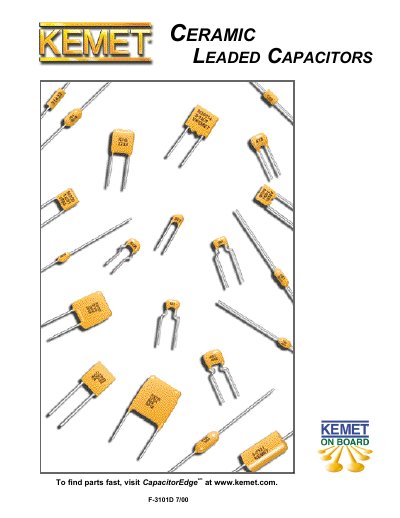

The document catalogs KEMET's ceramic leaded capacitors, covering multilayer, conformally coated, and molded varieties with both axial and radial lead configurations. It includes performance characteristics, general specifications, and detailed ordering and marking information for each series such as AXIMAX, GOLDEN MAX, and others.
Technical data such as working voltage ranges, temperature characteristics, dissipation factor, insulation resistance, dielectric strength, and construction details are presented, along with packaging specifications and contact information for KEMET worldwide sales offices.
| Dielectric Strength | 2.5 × rated DC voltage |
|---|
Capacitors should be de‑aged for 2 hours at 150 °C and then stabilized at room temperature for 48 hours before capacitance measurements are made.
The dielectric strength is specified as 2.5 times the rated DC voltage.
