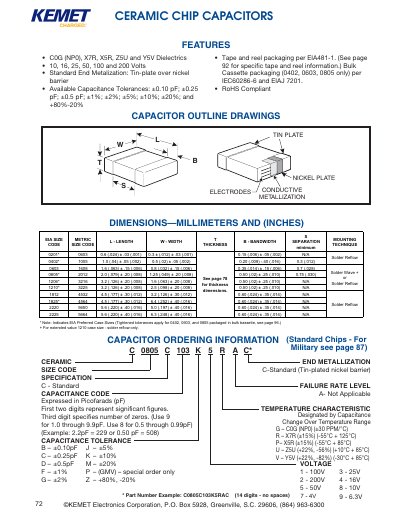

This document provides specifications and features of KEMET Electronics Corporation's CERAMIC CHIP CAPACITORS, including dimensions, materials, capacitance, tolerance, temperature characteristics, and voltage ratings.
This document details KEMET's multilayer ceramic chip capacitors, focusing on the C0805 size but also covering other standard sizes. It lists available dielectric materials, voltage ratings, capacitance tolerances, and physical dimensions for each package.
Packaging information includes tape‑and‑reel dimensions, reel sizes, cover‑tape requirements, and optional laser marking. The data is intended for designers and manufacturers needing precise component specifications for automated assembly.
| Capacitance Tolerances | ±0.10 pF; ±0.25 pF; ±0.5 pF; ±1 %; ±2 %; ±5 %; ±10 %; ±20 %; +80 %/‑20 % |
|---|---|
| Dielectric Types | C0G (NP0), X7R, X5R, Z5U, Y5V |
| 0805 Package Thickness | ≈0.79 mm |
| Tape & Reel Width | 8 mm ±0.30 mm (0.315 in) or 12 mm ±0.30 mm (0.472 in) |
| Cover Tape Break Force | Minimum 1.0 kg |
KEMET provides C0G (NP0), X7R, X5R, Z5U and Y5V dielectric options.
Yes, laser marking is offered as an extra‑cost option for most KEMET ceramic chips, except size 0402 and Y5V parts.
