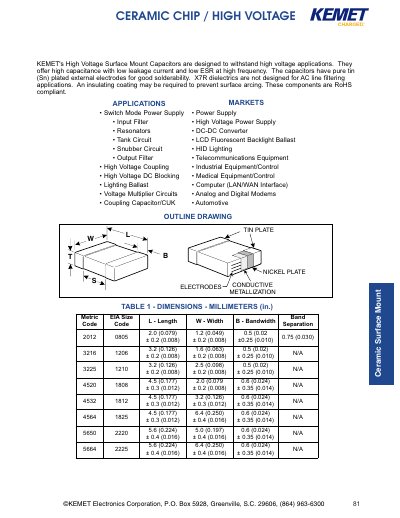

This file is the specification of KEMET's CERAMIC CHIP / HIGH VOLTAGE product
This datasheet provides detailed specifications for KEMET high‑voltage ceramic chip capacitors, covering dimensions, electrical parameters, dielectric types, voltage ratings, and packaging options. The document includes tables of chip sizes, capacitance codes, tolerance, and recommended soldering processes.
Key application areas include switch‑mode power supplies, high‑voltage power supplies, input filters, DC‑DC converters, and industrial equipment. Packaging information for tape‑and‑reel and bulk cassette formats is also provided.
| Voltage Ratings | 500 V, 1000 V, 1500 V, 2000 V, 2500 V, 3000 V |
|---|---|
| Dielectric Types | C0G, X7R, Y5V |
| Operating Temperature Range | -55 °C to +125 °C |
| Capacitance Range (X7R) | 10 pF to 0.22 µF |
| Maximum Thickness | 0.080 in (2.03 mm) for 4520 size |
The capacitors are offered with voltage ratings of 500 V, 1000 V, 1500 V, 2000 V, 2500 V, and 3000 V.
KEMET provides C0G, X7R, and Y5V dielectric options for the high‑voltage ceramic chips.
The capacitors operate from –55 °C up to +125 °C.
They are supplied in tape‑and‑reel (8 mm or 12 mm) or bulk cassette formats compatible with standard pick‑and‑place equipment.
