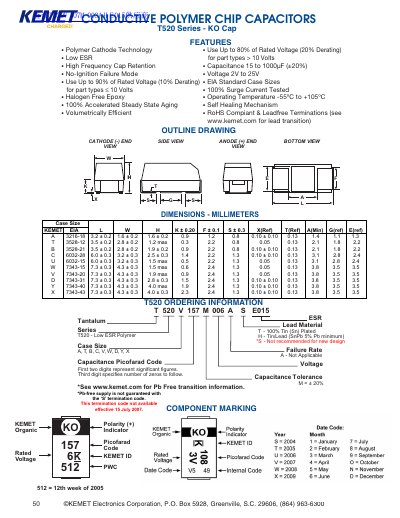

This datasheet provides all product information for the KEMET T520 series, including capacitance, voltage, and case size.
The T520 Series conductive polymer chip capacitors feature polymer cathode technology, low ESR, high frequency retention, and a self‑healing mechanism. They are available in a wide capacitance range (15 µF to 1000 µF) and voltage ratings from 2 V to 25 V, with up to 80 % of rated voltage usable (20 % derating).
The datasheet includes detailed dimensions for multiple EIA case sizes, ordering codes, part‑number construction rules, and electrical characteristics such as ESR, ripple current, leakage, and temperature limits. It also notes RoHS compliance and lead‑material options for each part.
| Capacitance range | 15 µF to 1000 µF (±20%) |
|---|---|
| Voltage rating | 2 V to 25 V |
| Operating temperature | -55 °C to +105 °C |
| ESR characteristic | Low ESR for part types > 10 V |
| Surge current capability | 100 % surge current tested |
| Lead material options | Tin/Lead (SnPb 5 % Pb minimum) or 100 % Tin |
They operate from –55 °C up to +105 °C.
The series covers voltages from 2 V to 25 V, with specific part numbers for higher voltage options.
The first two digits represent significant figures, the third digit specifies the number of zeros, and a letter indicates lead material.
Yes, they are RoHS compliant and have lead‑free termination options.
