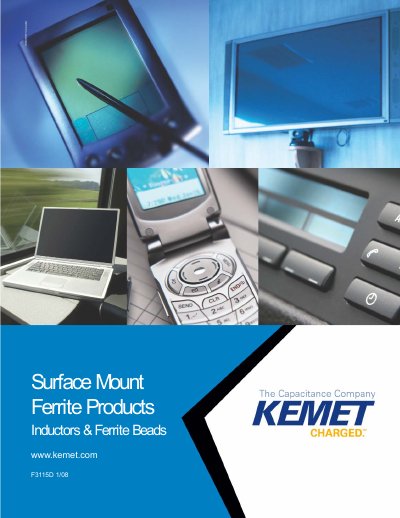

KEMET F3115D Surface Mount Ferrite Inductors & Ferrite Beads Product Leaflet

About this manual

The KEMET F3115D product leaflet provides a comprehensive overview of surface‑mount ferrite components, including wire‑wound chip inductors (L‑PW, L‑PWS, L‑PWI, L‑PWR series) and multilayer chip inductors (L‑RMS, L‑SMS, L‑PMS, L‑DMI series). Each series is broken down by case size (e.g., 0603, 0805, 0806, 1007, 1207) and type (standard, high‑current, low‑Rdc, bottom‑surface electrode, low‑profile).

Technical data such as operating temperature, inductance values, self‑resonant frequency, DC resistance and maximum rated current are presented in detailed tables, along with ordering codes for tape‑and‑reel packaging. The leaflet also covers ferrite chip beads (Z‑PWS/Z‑PWZ and Z‑SMS/Z‑PMS series) with similar specifications.

What's inside

• L‑Wire Wound Chip Inductors – L‑PW Series
• L‑Wire Wound Chip Inductors – L‑DWS/L‑DWI/L‑DWL Series
• L‑Multilayer Chip Inductors – L‑RMS Series
• L‑Multilayer Chip Inductors – L‑SMS/L‑PMS/L‑DMI Series
• L‑Low Profile SMD Inductors – L‑DWD Series
• Z‑High Current Ferrite Chip Beads – Z‑PWS/Z‑PWZ Series
• Z‑Multilayer Ferrite Chip Beads – Z‑SMS/Z‑PMS Series
• Features and Operating Temperature

Specifications

Frequently asked questions

What is the inductance of part L0805C1R0MPWST?

Part L0805C1R0MPWST has an inductance of 1.0 µH.
