This document is a KEMET 0805, 1005, 1206, 1210, 1805, 1808, 1812, 1825, 2225 MLCC specification sheet, including size, thickness, length, width, capacitance, capacitance tolerance, end electrode and other information.
The GR900 series from KEMET provides high‑reliability ceramic capacitors with BP (or BX) dielectric formulations. The series covers a wide range of capacitance values, voltage ratings, and tolerance options for demanding applications.

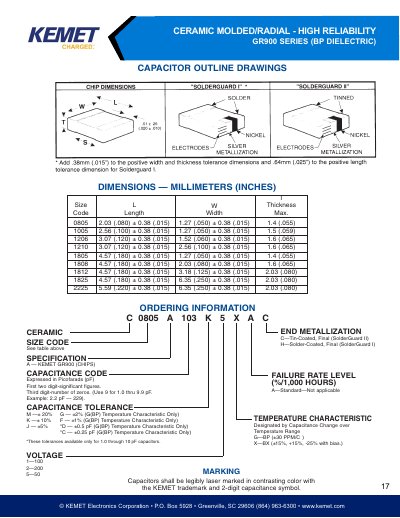

The document contains outline drawings, precise package dimensions, ordering information, capacitance codes, tolerance designations, temperature characteristics, end‑metallization options, and complete part‑number reference tables for each package size.
| Capacitance tolerance M | ±20% |
|---|---|
| End metallization C | Tin‑Coated, Final (SolderGuard II) |
| Voltage rating 1 | 100 V (BP) |
The 'M' code indicates a capacitance tolerance of ±20 %.
The 'C' code denotes a tin‑coated, final end‑metallization (SolderGuard II).
A KEMET part number is built by inserting the capacitance tolerance and end‑metallization codes into the base part number as shown in the reference tables.
