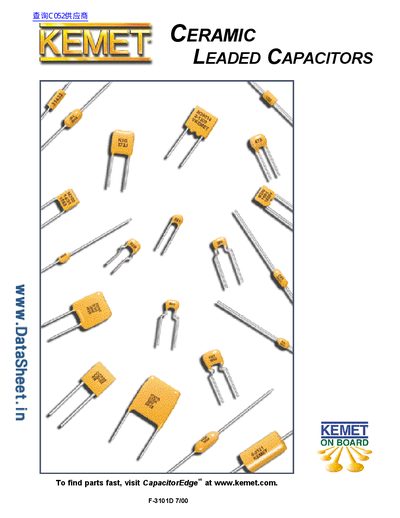

This manual introduces the detailed information of Ceramic Leaded Capacitors product line, including specifications, dimensions, marking, etc.
This leaflet provides detailed specifications for KEMET ceramic leaded capacitors, covering electrical limits, dielectric types, temperature characteristics, and standard construction. It also includes ordering information, part‑number references and packaging quantities.
Additional sections describe environmental test requirements, aging effects, and worldwide contact locations for KEMET sales and support.
| Dissipation Factor (COG) | 0.15% max |
|---|---|
| Dielectric Strength | 2.5 times rated DC voltage |
| Insulation Resistance (X7R) | 100 GΩ or 1000 MΩ (low‑frequency) |
| Temperature Range (X7R) | -55 °C to 125 °C |
The dissipation factor for COG capacitors is 0.15 % maximum.
X7R capacitors operate from –55 °C to 125 °C.
Z5U capacitors have an insulation resistance of 10 GΩ or 1000 MΩ at low frequency.
Dielectric strength is specified as 2.5 times the rated DC voltage.
