This document is the specification of “Aximar” and “Golden Max” brand multilayer ceramic capacitors, which introduces the characteristics of the products, including rated voltage, rated current, insulation resistance, dielectric constant, dissipation factor, temperature coefficient, volume and weight.

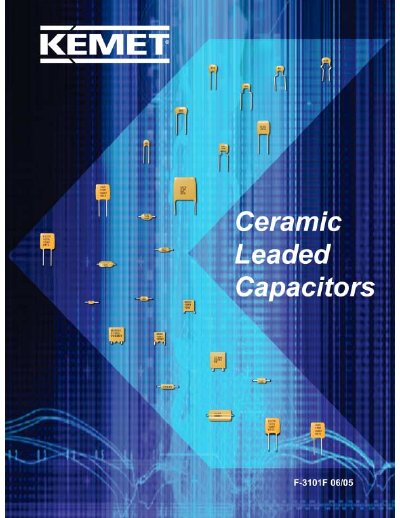

This leaflet presents KEMET's range of multilayer ceramic capacitors with axial and radial lead styles. It includes general information, performance characteristics, outline drawings, dimensions, ordering data, marking conventions, and part‑number references for each family.
Packaging options, such as tape‑and‑reel and bulk quantities, are detailed along with application notes that describe temperature and voltage effects on capacitance and dissipation factor.
| C0G temperature coefficient | 0 ±30 ppm/°C |
|---|---|
| X7R temperature coefficient | ±15 % |
| Z5U temperature coefficient | +22 % / –56 % |
| Working voltage options (axial & radial) | 50 V, 100 V, 200 V, 500 V, 1 kV, 1.5 kV, 2 kV, 2.5 kV, 3 kV |
| Maximum dissipation factor | C0G 0.15 %, X7R 2.5 %, Z5U 4.0 % |
The C0G dielectric is specified from –55 °C to +125 °C.
X7R capacitors have a maximum dissipation factor of 2.5 %.
