CSR09B563JA is a tantalum capacitor produced by KEMET Electronics Corporation. This capacitor has the characteristics of high voltage, high temperature stability and low leakage current.

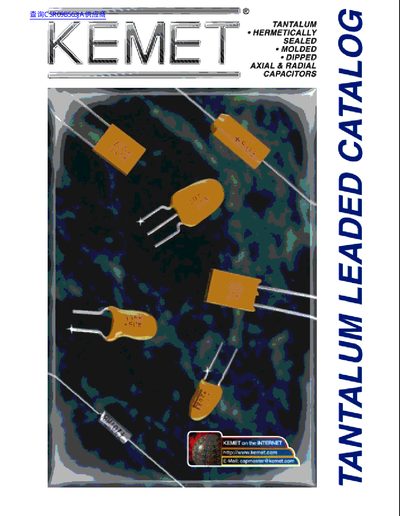

This document provides detailed specifications for KEMET's hermetically sealed axial tantalum capacitors, including the T110, T212, T111, T213, T222, T140, T242, T252, T262, T322, T323, T330, T340, T370, T378, T35X, T363, T369, T368, T396 and T398 series. It includes military ordering and marking information, performance characteristics, dimensions, ratings, part‑number references, and packaging details.
Key sections cover capacitance and voltage ranges, tolerance options, failure‑rate classifications, environmental test methods, lead material, insulating sleeves, and tape‑and‑reel packaging. The data is organized by series with outline drawings, dimension tables, and part‑number breakdowns to aid design and procurement.
| Capacitance range | .0023‑1200 µF |
|---|---|
| Voltage range | 6‑125 VDC |
| Failure rate level (S) | 0.001 % per 1000 hrs |
| Lead material | Solder‑coated nickel |
The T110 series offers tolerance symbols J (±5 %), K (±10 %) and M (±20 %).
The T212 series is classified with failure‑rate level S, which is 0.001 % per 1000 hours.
