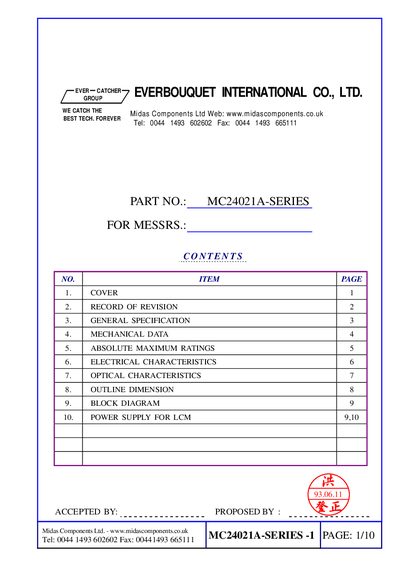

This document is a specification sheet for the MC24021A series, including mechanical data, electrical characteristics, optical characteristics, etc.
This document details the technical specifications of the Everbouquet MC24021A‑SERIES LCD module. It includes general specifications, mechanical dimensions, absolute maximum ratings, electrical and optical characteristics, as well as wiring and power supply information.
The manual also contains a block diagram, outline dimensions, and pin‑out connections, offering a complete reference for designers and integrators working with this display module.
| Module size (max) | 118.0 mm W × 36.0 mm H |
|---|---|
| Number of characters | 24 characters × 2 lines |
| Character size | 3.20 mm W × 4.85 mm H |
| Power supply for logic | 0 V to 6.0 V |
| Backlight type | LED backlight |
| Viewing angle | 30°–40° |
| Contrast (STN type) | 10° |
The module measures 118.0 mm wide by 36.0 mm high (maximum dimensions).
It supports 24 characters across two lines.
The module uses an LED backlight.
The logic circuit operates from 0 V up to 6.0 V.
