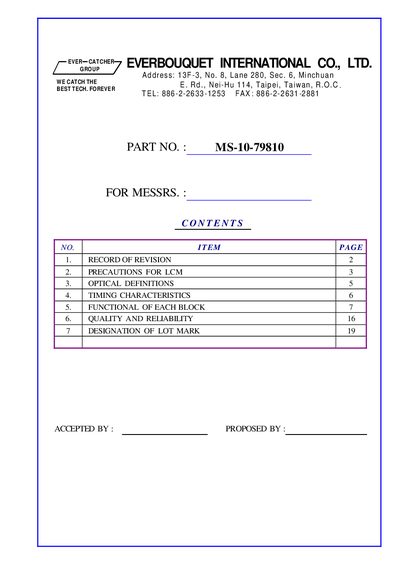

This document is a technical manual for the product MS-10-79810 from the Taiwanese company EVERBOUQUET INTERNATIONAL CO., LTD. The document mainly includes revision records, precautions for LCM, optical definitions, timing characteristics, functional details of each block, quality and reliability, etc.
This handbook describes the proper handling, storage, and soldering procedures for the Everbouquet MS-10-79810 LCD module. It includes static‑electric precautions, recommended humidity (50~60% RH), temperature limits for storage (0°C~35°C), and detailed soldering guidelines such as a 280°C iron tip temperature and 3‑4 sec per terminal.
Technical information covers optical definitions, timing parameters (enable cycle time 1.0 Hs, enable rise/fall time 25 ns, setup time 140 ns, data setup time 225 ns, data hold time 10 ns, address hold time 10 ns), functional block operation, and reliability test conditions (high temperature 60°C for 200 hr, low temperature -10°C for 200 hr, humidity storage 60°C/90%RH for 6 hr). The document also lists lot‑mark coding for traceability.
| Recommended humidity during handling | 50~60% RH |
|---|---|
| Soldering iron tip temperature | 280°C + 10°C |
| Soldering time per terminal | 3-4 sec |
| High temperature reliability test | 60°C, 200 hr |
| Low temperature reliability test | -10°C, 200 hr |
A humidity of 50~60% RH is recommended.
The iron tip should be set to about 280°C plus 10°C.
The part number is MS-10-79810.
