Start here

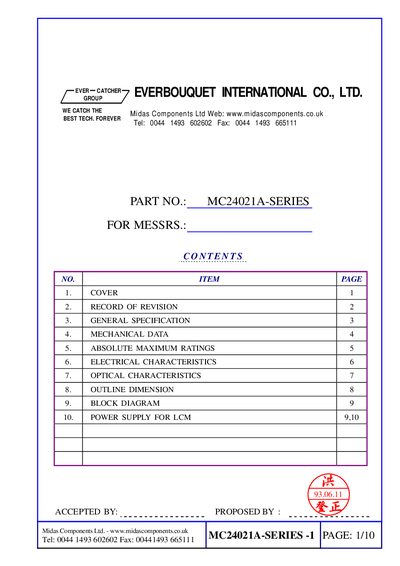

Everbouquet MC24021A-SERIES Datasheet
The MC24021A‑SERIES handbook provides detailed information on the LCD module, including general specifications, mechanical dimensions, absolute maximum ratings, and electrical and optical characteristics. It also contains a block diagram, outline dimensions, and power‑supply requirements for both the LCD and its backlight.
The document is organized with a table of contents, revision record, and separate sections for each technical area, making it a concise reference for designers and engineers working with this display module.
EVERBOUQUET MC24021A-SERIES specifications
| Number of characters | 24 CH × 2 LINE |
|---|---|
| Module size (max) | 118.0 mm W × 36.0 mm H |
| Character size | 3.20 mm W × 4.85 mm H |
| Dot size | 0.60 mm W × 0.65 mm H |
| LCD driving voltage (TN type) | 4.2 V |
| LED backlight supply voltage | 5.0 V |
| Viewing angle (STN type) | 30‑40° |
All EVERBOUQUET MC24021A-SERIES documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the module size of the MC24021A‑SERIES?
The maximum module size is 118.0 mm wide by 36.0 mm high.
What LCD driving voltage is recommended for the TN type LCD?
The recommended LCD driving voltage for the TN type is 4.2 V (Vpp‑Vo).
What is the module size of the MC24021A‑SERIES?
The module measures 118.0 mm wide by 36.0 mm high (maximum dimensions).
How many characters does the display show per line?
It supports 24 characters across two lines.
