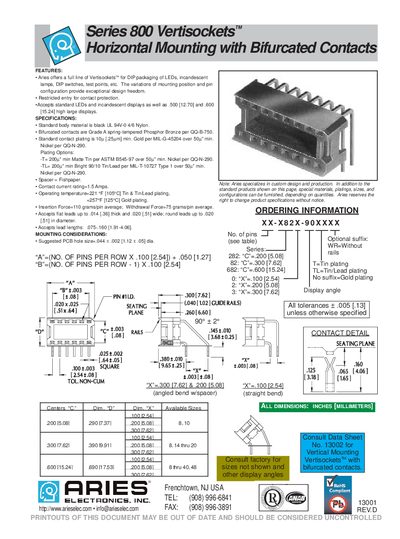

This document describes the features and specifications of Aries' Series 800 VertisocketsTM with horizontal mounting and bifurcated contacts. It provides design freedom and is suitable for DIP packaging of LEDs, incandescent lamps, DIP switches, test points, etc. The product features contact protection and various pin configurations.
Aries provides a full line of Vertisockets™ for DIP packaging, offering various mounting positions and pin configurations. The Series 800 version includes bifurcated contacts, restricted entry for protection, and accepts standard LEDs, incandescent displays, and large displays.
The document lists material and plating options, contact current rating, operating temperature limits, insertion/withdrawal forces, and recommended PCB hole sizes and lead dimensions. Ordering information and contact details for Aries Electronics are also provided.
| Body material | black UL 94-0 4/6 Nylon |
|---|---|
| Contact material | Grade A spring‑tempered Phosphor Bronze |
| Gold plating thickness | minimum 10 µin per MIL‑G‑45204 |
| Contact current rating | 1.5 A |
| Operating temperature (Gold plating) | up to 257 °F (125 °C) |
| Insertion force | 110 g per pin (average) |
| Recommended PCB hole size | 0.044 in + 0.002 in (1.12 mm + 0.05 mm) |
The contacts are rated for a maximum current of 1.5 amps.
Gold‑plated contacts can operate up to 257 °F (125 °C).
A hole size of 0.044 in plus 0.002 in (approximately 1.12 mm + 0.05 mm) is recommended.
