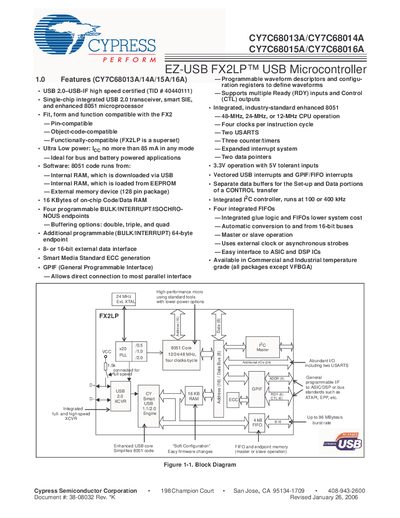

EZ-USB FX2LP™ USB Microcontroller CY7C68013A/CY7C68014A CY7C68015A/CY7C68016A is a single-chip integrated USB 2.0 transceiver, smart SIE, and enhanced 8051 microprocessor from Cypress Semiconductor Corporation. It is compatible with FX2 series in all aspects, with low power consumption, and can be applied to bus and battery powered applications.
The EZ-USB FX2LP family (CY7C68013A, CY7C68014A, CY7C68015A, CY7C68016A) is a low‑power USB 2.0 microcontroller that integrates a USB 2.0 transceiver, smart SIE, and an enhanced 8051 core. It offers up to 48 MHz CPU operation, 16 KB of on‑chip code/data RAM, and up to 40 GPIO pins in various lead‑free packages.
The device supports full‑speed (12 Mbps) and high‑speed (480 Mbps) USB operation, provides programmable GPIF, multiple bulk/interrupt/isochronous endpoints, and bus‑powered operation with suspend current as low as 100 µA. It is used in portable video recorders, DSL modems, memory‑card readers, cameras, and other USB‑based applications.
| USB full‑speed data rate | 12 Mbps |
|---|---|
| USB high‑speed data rate | 480 Mbps |
| Typical suspend current (battery‑powered models) | 100 µA |
| On‑chip code/data RAM | 16 KB |
| Maximum GPIO pins | 40 |
| Default USB Vendor ID | 0x04B4 |
| Default USB Product ID | 0x8613 |
It supports Full‑speed (12 Mbps) and High‑speed (480 Mbps) USB operation.
The 56‑pin QFN package provides 26 GPIO pins.
The default Vendor ID is 0x04B4 and the Product ID is 0x8613.
