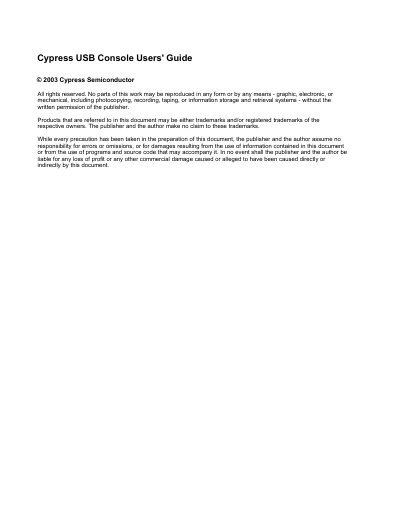

The Cypress USB Console Users' Guide provides step‑by‑step instructions for using the CyConsole application to communicate with USB devices that match the CyUSB.sys driver. It describes the main window layout, toolbar functions, script recording and playback, device property inspection, and both control and non‑control endpoint transfers.
The guide also details the EZ‑USB Interface toolbars for vendor‑specific requests, isochronous, bulk, and pipe operations, and explains how to configure the CyUSB.sys driver by editing the CyUSB.inf file and forcing Windows to use the driver for a specific device.
Start a recording session by clicking the camera icon in the toolbar; the status bar will show "Recording..." in red.
Click the clock icon in the toolbar while recording; each click inserts a 100 ms delay.
Click the Load Script icon, select the script file, choose the target USB device from the list, then click the Play Script icon.
Edit the CyUSB.inf file: add the device's VendorID and ProductID in the [Cypress] section, then update the [Strings] section with a description, and force Windows to use the driver via Device Manager.
