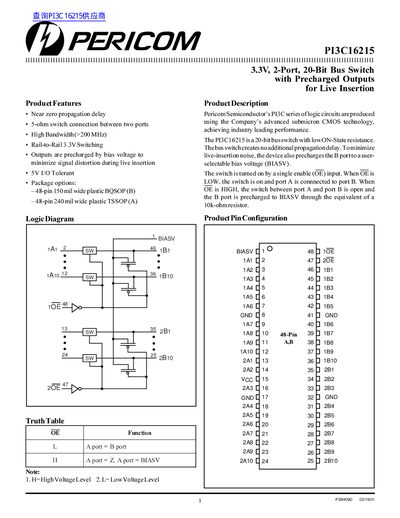

The Pericom Semiconductor PI3C16215 is a 3.3V, 2-port, 20-bit bus switch featuring low ON-state resistance and near-zero propagation delay. It utilizes advanced submicron CMOS technology to achieve high bandwidth performance exceeding 200MHz.
| Supply Voltage (VCC) | 3.0V to 3.3V |
|---|---|
| Operating Temperature Range | -40°C to +85°C |
| Bandwidth | >200MHz |
| Switch Connection Resistance | 5-ohm |
| Package Options | 48-pin TSSOP or BQSOP |
The switch is turned on by a single enable (OE) input; when OE is LOW, port A connects to port B.
When OE is HIGH, the connection between ports opens and port B is precharged to a user-selectable bias voltage.
