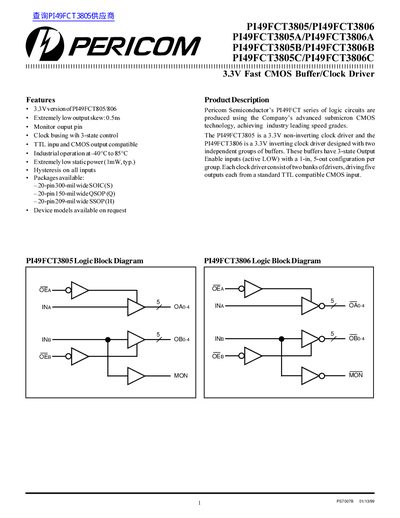

The document provides logic block diagrams and product descriptions for two products. The products have specific functions and features.
The document describes the PI49FCT3805 (non-inverting) and PI49FCT3806 (inverting) as 3.3V fast CMOS buffer/clock drivers designed for industrial operation between -40°C and +85°C. These devices feature a 1-input, 5-output configuration per group with three-state output enable inputs that are active LOW.
| Operating Temperature Range | -40°C to +85°C |
|---|---|
| Supply Voltage | 3.3V |
| Output Skew (Typical) | 0.5ns |
| Static Power Consumption | 1mW typ. |
| Input Hysteresis | 150 mV |
The devices are available in 20-pin SOIC (S), QSOP (Q), and SSOP (H) packages.
The device operates in an ambient temperature range of -40°C to +85°C.
Each clock driver consists of two banks that drive five outputs each from a single input.
The device has an extremely low static power of 1mW.
