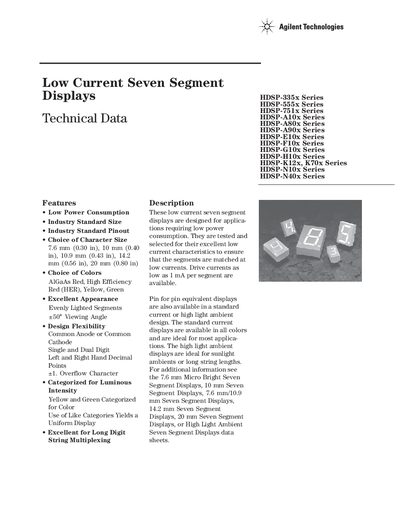

Low current seven segment LED displays have industry standard size and pinout, and offer multiple character sizes and colors to suit various applications.
The HDSP‑A90x series are low‑current seven‑segment LED displays designed for applications that require minimal power consumption. They are available in multiple character sizes, colors and pin configurations, with drive currents as low as 1 mA per segment.
The document provides detailed part numbering, package dimensions, intensity bin limits, electrical/optical characteristics and handling guidelines, along with contact information for Agilent technical support.
| Drive current per segment | as low as 1 mA |
|---|---|
| Character size options | 7.6 mm, 10 mm, 10.9 mm, 14.2 mm, 20 mm |
| Color options | AlGaAs Red, High Efficiency Red, Yellow, Green |
| Pin configuration | Common Anode or Common Cathode |
| Intensity bin limits (HDSP‑A90x, Yellow) | E 0.315–0.520 mcd, F 0.425–0.760 mcd, G 0.625–1.14 mcd, H 0.94–1.70 mcd, I 1.40–2.56 mcd, J 2.10–3.84 mcd, K 3.14–5.76 mcd, L 4.71–8.64 mcd, M 7.07–13.00 mcd, N 10.60–19.40 mcd, O 15.90–29.20 mcd, P 23.90–43.80 mcd, Q 35.80–65.60 mcd |
The displays can operate with drive currents as low as 1 mA per segment.
Available colors include AlGaAs Red, High Efficiency Red, Yellow, and Green.
Character sizes of 7.6 mm, 10 mm, 10.9 mm, 14.2 mm, and 20 mm are offered.
Both common‑anode and common‑cathode configurations are available.
