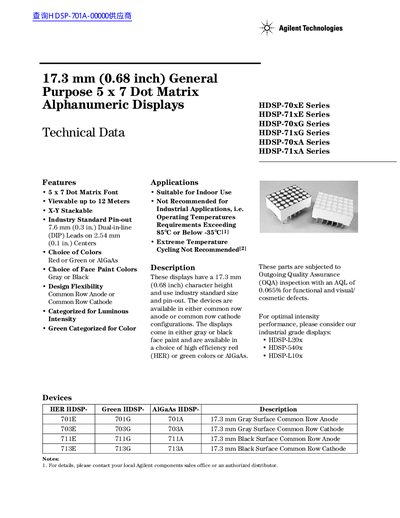

This document provides technical data for the 17.3 mm (0.68 inch) General Purpose 5 x 7 Dot Matrix Alphanumeric Displays. The product features a 5 x 7 dot matrix font, viewable up to 12 meters, X-Y stackable, industry standard pin-out, and a choice of colors and face paint. It is suitable for indoor use but not recommended for industrial applications with extreme temperature requirements.
The HDSP-70xE series are 17.3 mm (0.68 inch) character height alphanumeric displays with a 5 × 7 dot matrix. They are viewable up to 12 meters, X‑Y stackable, and use an industry‑standard 2.54 mm (0.1 in.) pin‑out. Options include red, green or AlGaAs emitters and gray or black face‑paint colors, with either common‑row anode or common‑row cathode configurations.
The data sheet provides package dimensions, absolute maximum ratings, optical/electrical characteristics, intensity bin limits, and handling guidelines such as recommended cleaning agents and soldering limits. Contact information for Agilent technical support and distributor listings are also included.
| Character height | 17.3 mm (0.68 inch) |
|---|---|
| Dot matrix | 5 × 7 |
| Maximum viewable distance | 12 meters |
| Pin spacing | 2.54 mm (0.1 in.) |
| Available colors | Red, Green, AlGaAs |
| Face‑paint colors | Gray, Black |
| Forward voltage (typical) | 3.40 V |
The displays can be viewed up to 12 meters.
They are offered in red, green, or AlGaAs emitters, with gray or black face‑paint options.
