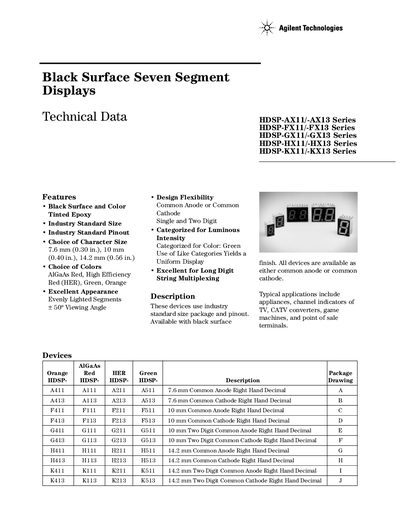

The document introduces a series of seven segment displays made of AlGaAs material, including options of different sizes, colors, and common polarity. These displays have a black surface and color tinted epoxy, and conform to industry standard size and pinout. They feature evenly lighted segments with a viewing angle of ± 50°, and are suitable for long digit string multiplexing.
The Agilent HDSP‑AX11/AX13 series provides black‑surface seven‑segment displays with industry‑standard size and pinout. Options include multiple character sizes (7.6 mm, 10 mm, 14.2 mm) and colors such as AlGaAs Red, High‑Efficiency Red, Green and Orange. Devices are offered in common‑anode or common‑cathode configurations and can be single‑digit or two‑digit.
The datasheet lists mechanical options, package dimensions, absolute maximum ratings, and electrical/optical characteristics. It also defines intensity and color bins, and provides contact information for technical assistance.
| Character size options | 7.6 mm, 10 mm, 14.2 mm |
|---|---|
| Available colors | AlGaAs Red, High Efficiency Red (HER), Green, Orange |
| Operating temperature range | -20 °C to +100 °C |
The displays are offered in three character sizes: 7.6 mm, 10 mm, and 14.2 mm.
Available colors are AlGaAs Red, High‑Efficiency Red (HER), Green, and Orange.
The devices operate from –20 °C up to +100 °C.
