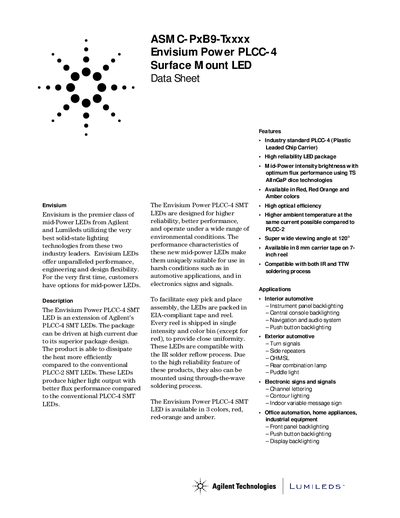

The ASMC-PxB9-Txxxx Envisium Power PLCC-4 Surface Mount LED datasheet introduces the features of the product, including industry standard PLCC-4 package, high reliability LED package, mid-power intensity brightness with optimum flux performance using TS AlInGaP dice technologies, available in Red, Red Orange and Amber colors, high optical efficiency, higher ambient temperature at the same current possible compared to PLCC-2, and super wide 120° viewing angle.
The Envisium Power PLCC‑4 SMT LED is a mid‑power surface‑mount LED offering high optical efficiency and reliability for automotive, signage, and industrial applications. It is available in red, red‑orange, and amber colors and can be supplied on 8 mm carrier tape on 7‑inch reels.
Key specifications include a forward current up to 200 mA, power dissipation of 240 mW, reverse voltage of 5 V, and operation from –40 °C to +100 °C. The device features a PLCC‑4 package with dimensions given in millimetres and complies with EIA‑standard tape and reel packaging.
| Package dimensions | mm |
|---|---|
| Power dissipation | 240 mW |
| Peak forward current | 200 mA |
| Reverse voltage | 5 V |
| Junction temperature (max) | 125 °C |
| Operating temperature range | -40 °C to +100 °C |
| Available colors | Red, Red‑Orange, Amber |
Drive current between 10 mA and 70 mA is recommended; operation below 5 mA is not recommended.
The LED is available in red, red‑orange, and amber colors.
