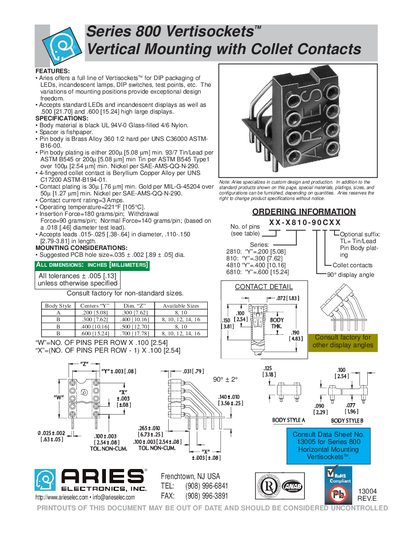

This document describes the features and characteristics of the Series 800 Vertisockets™ vertical mounting with collet contacts produced by Aries. It includes the exceptional design freedom provided by the variations of mounting positions, the compatibility with standard LEDs, incandescent displays, and large displays, as well as the specifications of the product such as the materials, platings, and contact current rating.
The Series 800 Vertisockets™ are vertical mounting components designed for LEDs, incandescent lamps, DIP switches, test points and similar devices. Aries offers a full line of Vertisockets with various mounting positions to give designers flexibility.
The product sheet lists material options, plating choices, current rating, temperature limits and precise mechanical dimensions. Custom designs and special materials can be supplied on request, and the document includes recommended PCB hole sizes and lead diameter ranges.
| Body material | black UL 94V-0 Glass-filled 4/6 Nylon |
|---|---|
| Pin body material | Brass Alloy 360 1/2 hard (UNS C36000) |
| Pin body plating | 200 µin min. 93/7 Tin/Lead per ASTM B545 |
| Collet contact material | Beryllium Copper Alloy (UNS 17200) |
| Contact plating (gold) | 30 µin min. Gold per MIL-G-45204 |
| Contact current rating | 3 A |
| Operating temperature | 221 °F (105 °C) |
| Recommended PCB hole size | 0.035 in + 0.002 in |
The contact current rating is 3 Amps.
They can operate up to 221 °F (105 °C).
The pin body is made of Brass Alloy 360 1/2 hard (UNS C36000).
