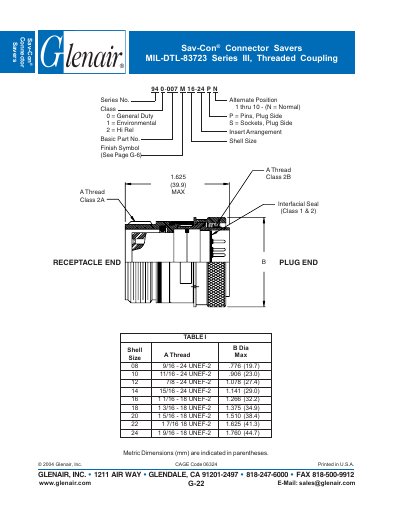

Glenair MIL-DTL-83723 Series III Threaded Coupling Connector Savers Data Sheet
The Glenair Sav‑Con® Connector Savers data sheet describes the MIL‑DTL‑83723 Series III threaded coupling components used in military and industrial connector applications. It lists metric dimensions, shell sizes, thread specifications, and the arrangement of pins and sockets.
The document also explains the alternate insert positions, showing how pin inserts rotate clockwise while socket inserts rotate counter‑clockwise, and provides detailed tables of diameters, thread classes, and contact quantities for each shell size.
Glenair MIL-DTL-83723 specifications
| Interfacial Seal (Class 1 & 2) | 1.625 mm (39.9 in) |
|---|---|
| Thread Size 9/16 | 24 UNEF‑2 |
| Maximum Diameter for Shell Size 08 | 0.776 in (19.7 mm) |
| Insert Arrangement | Pins rotate clockwise, sockets rotate counter‑clockwise |
Source: Glenair MIL-DTL-83723 Series III Threaded Coupling Connector Savers Data Sheet
All Glenair MIL-DTL-83723 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What interfacial seal class is specified for the connector savers?
The interfacial seal is Class 1 & 2.
From: Glenair MIL-DTL-83723 Series III Threaded Coupling Connector Savers Data Sheet
How do the pin and socket inserts move in alternate positions?
The pin insert rotates clockwise while the socket insert rotates counter‑clockwise the same number of degrees relative to the master key.
From: Glenair MIL-DTL-83723 Series III Threaded Coupling Connector Savers Data Sheet
What is the thread class for the receptacle end?
The receptacle end uses Thread Class 2B.
From: Glenair Sav-Con® Connector Savers MIL-DTL-83723 Series III Datasheet
Which shell sizes are available for the Sav‑Con® Connector Savers?
Shell sizes range from 08 up to 24, as listed in the datasheet.
From: Glenair Sav-Con® Connector Savers MIL-DTL-83723 Series III Datasheet
