This is a technical specification table for a connector.

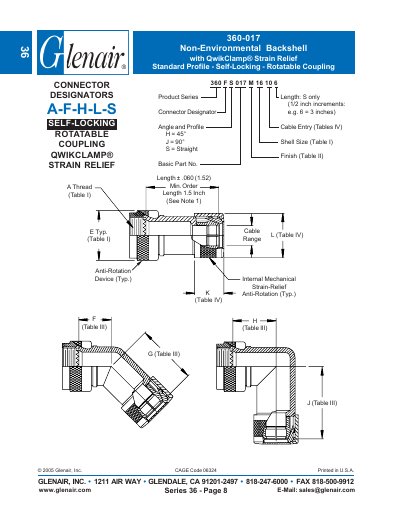

The 360-017 backshell is a non‑environmental connector accessory featuring a self‑locking, rotatable coupling and QwikClamp® strain‑relief system. It supports multiple profile angles (H = 45°, J = 90°, S = Straight) and offers a range of standard finishes such as Cadmium Plate Olive Drab, Anodize Black, Hard Coat Anodic, and Electroless Nickel.
Dimensions are provided in half‑inch increments (e.g., 6 = 3 inches) and cable entry ranges are defined by the accommodation limits for the wire bundle or cable. Detailed tables list shell sizes, connector designators, and cable range specifications for precise selection.
| Profile Angle Options | H = 45°, J = 90°, S = Straight |
|---|---|
| Length Increment | 1/2 inch increments (e.g., 6 = 3 inches) |
| Cable Range Definition | Accommodations range for the wire bundle or cable |
The backshell offers three profile angles: H = 45°, J = 90°, and S = Straight.
The cable range is defined as the accommodations range for the wire bundle or cable.
