The HDSP-5082 series LED display is a standard 7-segment LED display with multiple color and design choices, suitable for long-string multiplexing.

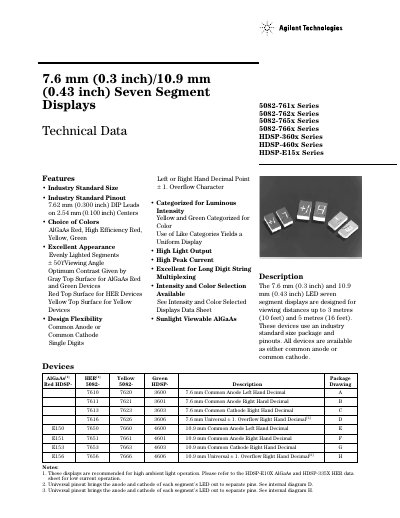

The Agilent HDSP series provides 7.6 mm (0.3 in) and 10.9 mm (0.43 in) LED seven‑segment displays designed for high‑ambient‑light operation and long digit strings. Devices are offered in common‑anode or common‑cathode configurations with optional left‑hand or right‑hand decimal points and a variety of color and intensity bins.
The datasheet lists absolute maximum ratings, electrical/optical characteristics, intensity bin limits and mechanical options. It also references related application notes for contrast enhancement and soldering guidelines, and provides contact information for Agilent worldwide support.
| Package size | 7.62 mm (0.300 in) DIP |
|---|---|
| Viewing angle | ±50° |
| Typical forward voltage per segment | 3.0 V |
| Peak wavelength (AlGaAs Red) | 645 nm |
Displays can be configured as common anode or common cathode, with left‑hand or right‑hand decimal point options.
Typical forward voltage per segment is 3.0 V.
Contrast‑enhancement details are provided in Application Note 1015.
