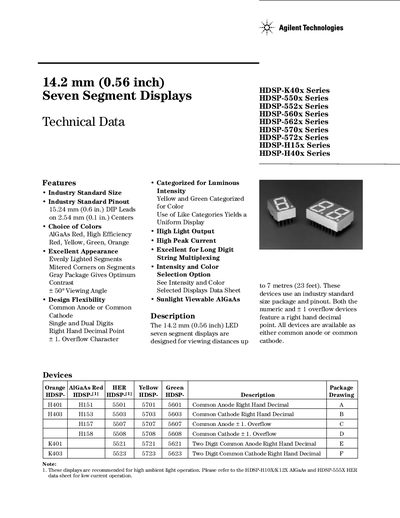

The 14.2 mm (0.56 inch) LED seven segment displays are designed for viewing distances up to 7 metres (23 feet). These devices use an industry standard size package and pinout. Both the numeric and ± 1 overflow devices feature a right hand decimal point. All devices are available as either common anode or common cathode.
The HDSP series from Agilent Technologies provides industry‑standard 14.2 mm (0.56 in.) seven‑segment LED displays in a variety of colors (AlGaAs Red, Yellow, Green, Orange) and configurations (common anode, common cathode, single or dual digit, right‑hand decimal point, overflow character). The devices are designed for high ambient‑light operation and are available in multiple intensity and color bins.
The handbook includes package dimensions, electrical and optical characteristics, maximum ratings, and bin‑limit tables for each color family. It also provides part‑numbering information, mechanical options, and contact details for technical support.
| Package size | 14.2 mm (0.56 in.) |
|---|---|
| Luminous intensity (Red) | 1.2–9.1 cd (typ) |
| Forward voltage per segment (Red) | 2.0–3.0 V at 100 mA |
| Peak wavelength (Red) | 645 nm |
| Operating temperature range | -20 °C to +100 °C |
| Maximum forward current per segment | 160 mA (typ) |
The HDSP displays use a 14.2 mm (0.56 in.) single‑digit seven‑segment package.
The series is offered in AlGaAs Red, Yellow, Green, and Orange colors.
Each device can be ordered as either common anode or common cathode, with right‑hand decimal point and overflow character options.
They are rated for operation from –20 °C up to +100 °C.
