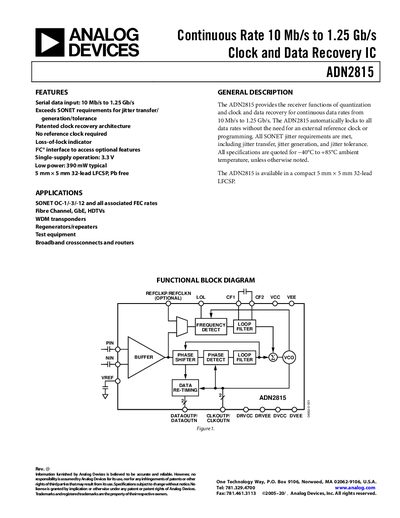

ADN2815 is a clock and data recovery IC that achieves continuous data rates from 10 Mb/s to 1.25 Gb/s. The chip integrates quantization, clock recovery, and data recovery functions, and does not require an external reference clock, and can automatically lock to all data rates.
The ADN2815 provides continuous‑rate clock and data recovery for serial data streams from 10 Mb/s up to 1.25 Gb/s. It automatically locks to any data rate without an external reference clock, includes a loss‑of‑lock indicator, and offers a PC interface for optional features. The device operates from a single 3.3 V supply and consumes about 390 mW typical power.
Typical applications include SONET OC‑1/‑3/‑12, Fibre Channel, Gigabit Ethernet, HDTV, WDM transponders, regenerators, test equipment, and broadband cross‑connects. The IC is supplied in a compact 5 mm × 5 mm 32‑lead LFCSP package.
