Aries specializes in custom design and production of Series 800 VertisocketsTM with vertical mounting and bifurcated contacts. The products offer exceptional design freedom with various mounting positions and pin configurations. The standard products are made of black UL 94V-0 4/6 Nylon, with Grade A spring-tempered Phosphor Bronze bifurcated contacts and 10μm minimum gold plating over 50μm minimum nickel plating. The products have a contact current rating of 1.5 Amps and can operate at temperatures up to 221°F [105°C] (for Tin and Tin/Lead plating) or 257°F [125°C] (for Gold plating).
The Series 800 Vertisockets are vertical‑mount components designed for LEDs, incandescent lamps, DIP switches, test points and similar devices. Aries supplies a range of mounting positions and pin configurations to give designers flexibility, with restricted entry for contact protection.

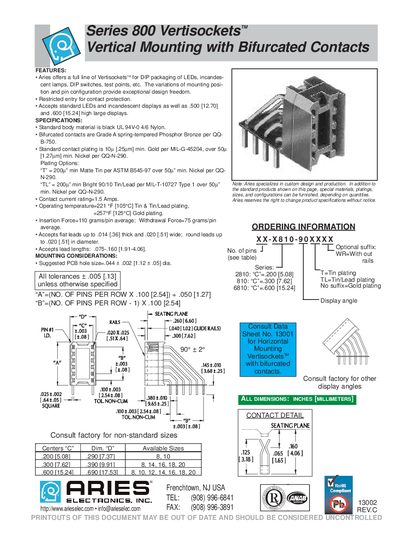

The document lists material and plating options, electrical ratings, mechanical dimensions, and ordering details such as lead size limits and recommended PCB hole dimensions. Custom designs, special materials and plating options are also available on request.
| Body material | black UL 94V-0 4/6 Nylon |
|---|---|
| Contact material | Grade A spring‑tempered Phosphor Bronze |
| Standard contact plating | 10 µm Gold over 50 µm Nickel |
| Contact current rating | 1.5 A |
| Operating temperature (Tin plating) | 221 °F (105 °C) |
| Operating temperature (Gold plating) | 257 °F (125 °C) |
| Insertion force | 110 g per pin (average) |
| Withdrawal force | 75 g per pin (average) |
| Maximum flat lead size | 0.014 in thick, 0.020 in wide |
| Recommended PCB hole size | 0.044 in + 0.002 in |
The contact current rating is 1.5 amps.
The body is made of black UL 94V‑0 4/6 Nylon, and the contacts are Grade A spring‑tempered Phosphor Bronze.
For Tin & Tin/Lead plating the limit is 221 °F (105 °C); for Gold plating it is 257 °F (125 °C).
A hole size of 0.044 in plus 0.002 in (≈1.12 mm + 0.05 mm) is recommended.
