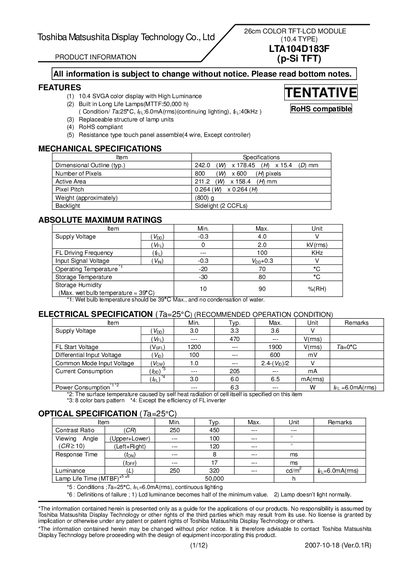

The LTA104D183F is a 26 cm (10.4‑inch) SVGA color TFT‑LCD module with high‑luminance display and built‑in long‑life CCFL backlight. It features a replaceable lamp unit, RoHS compliance, and a 4‑wire resistive touch panel.
The document lists detailed mechanical dimensions, electrical ratings, optical performance, timing parameters, connector pin assignments, and safety precautions for proper integration of the module into equipment designs.
| Dimensional Outline (typ.) | 242.0 mm (W) × 178.45 mm (H) × 15.4 mm (D) |
|---|---|
| Number of Pixels | 800 × 600 |
| Typical Supply Voltage | 3.3 V |
| Contrast Ratio (typ.) | 450 |
| Luminance (typ.) | 320 cd/m² |
| Backlight Lamp MTBF | 50,000 h |
The typical supply voltage is 3.3 V.
The backlight lamp has a mean time between failures of 50,000 hours.
Connector 20268-020E-12F from I‑PEX Co., Ltd. is used for the LCD interface.
The absolute maximum supply voltage range is –0.3 V to 4.0 V.
