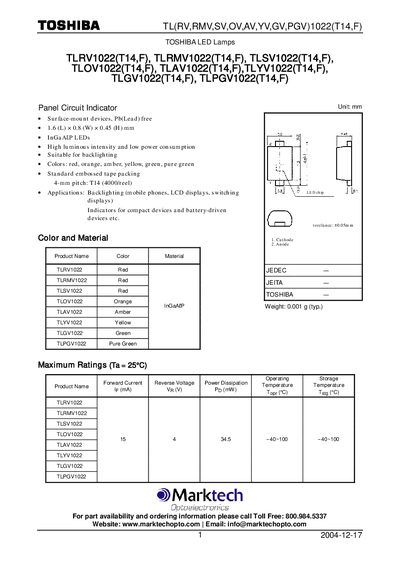

TL(RV,RMV,SV,OV,AV,YV,GV,PGV)1022(T14,F) is a LED lamp produced by TOSHIBA. It has high luminous intensity and low power consumption, suitable for backlighting. It has red, orange, amber, yellow, green, pure green colors, 4 mm pitch, standard embossed tape packaging, and 4000/roll.
The TL1022 series includes a family of surface‑mount LED lamps (RV, RMV, SV, OV, AV, YV, GV, PGV) designed for backlighting in mobile phones, LCD displays and other compact devices. They offer high luminous intensity, low power consumption, and are available in several colors such as red, orange, amber, yellow, green and pure green.
The document provides forward voltage, reverse current, luminous intensity, dominant wavelength, packaging (4 000‑piece reels) and handling restrictions. It also outlines maximum operating temperatures and safety notes for GaAs‑based devices.
| Packaging Quantity per Reel | 4 000 pcs |
|---|---|
| Operating Temperature Range | -40 °C to +100 °C |
Each reel contains 4 000 pieces and is sealed in an aluminum pack with silica gel; cartons hold 20 000 pieces.
They are rated for operation from –40 °C up to +100 °C.
