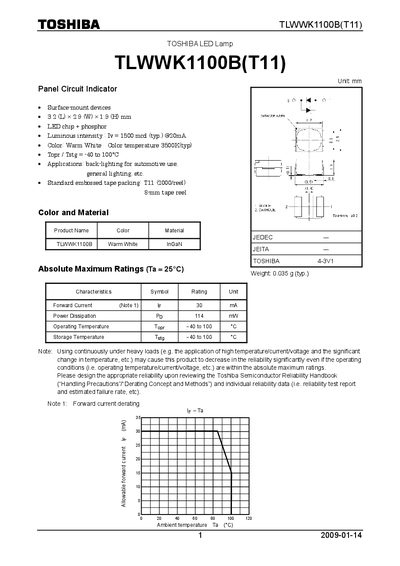

TLWWK1100B(T11) is a LED lamp from Toshiba. It has 3.2(L) × 2.9(W) × 1.9(H) mm dimensions, Luminous intensity is 1500 mcd, Color is Warm White(3500K), Topr / Tstg is -40 to 100°C, and applications are back-lighting for automotive use, general lighting, etc.
The TLWWK1100B (T11) is a warm‑white LED lamp with a typical luminous intensity of 1500 mcd and a color temperature of 3500 K. Electrical characteristics include a forward voltage of 3.2 V at 20 mA and a maximum forward current of 30 mA. The device is designed for general display back‑lighting in automotive and other lighting applications.
The LED is supplied in an aluminum envelope with silica‑gel moisture protection and packaged on a 4 mm pitch T11 tape reel (2,000 pieces per reel). Detailed handling, storage, soldering, and cleaning instructions are provided to ensure reliability, including recommended temperature and humidity limits before and after opening the moisture‑proof bag.
| Forward Voltage (typ) | 3.2 V @ 20 mA |
|---|---|
| Maximum Forward Current | 30 mA |
| Power Dissipation | 114 mW |
| Operating Temperature | -40 °C to 100 °C |
| Luminous Intensity (typ) | 1500 mcd |
| Color Temperature | 3500 K (typ) |
| Weight | 0.035 g (typ) |
Toshiba recommends ASAHI CLEAN AK‑225AES, KAO CLEAN THROUGH 750H, and PINE ALPHA ST‑100S as cleaning solvents.
Each T11 tape reel contains 2,000 LEDs.
